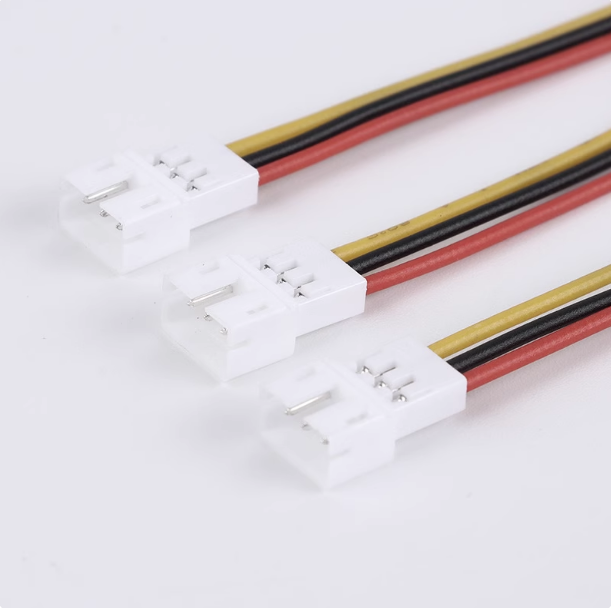

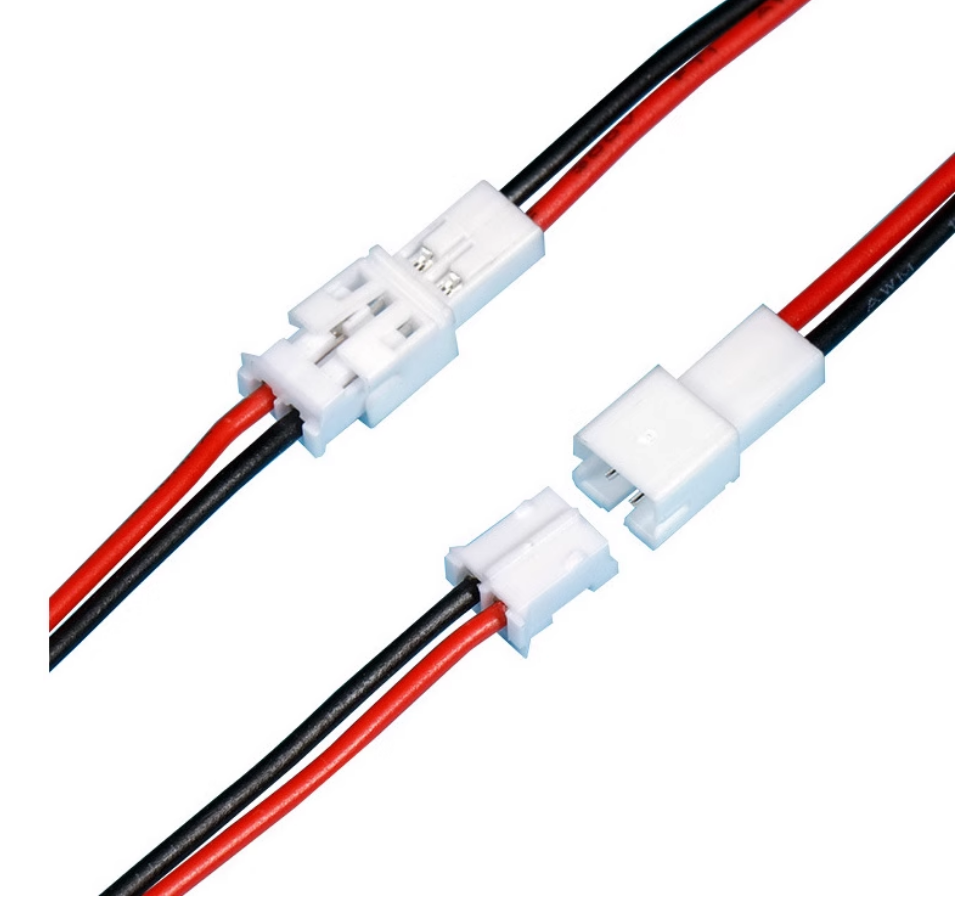

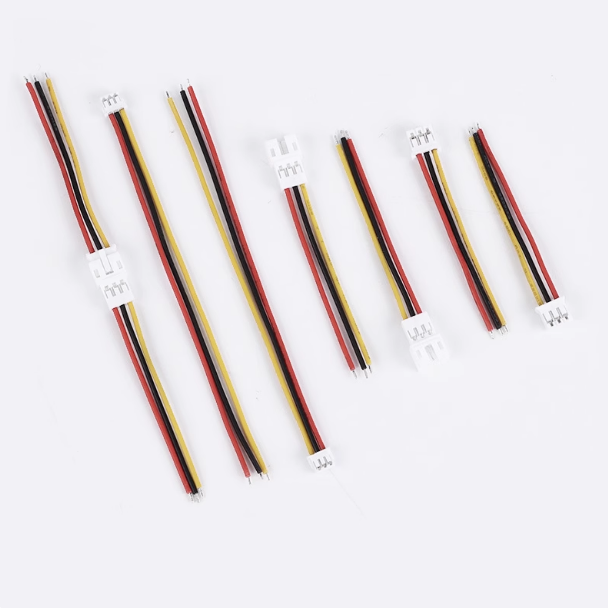

PH2.0 Male-Female Extension Cable Terminal Wire / Connector Cable / Electronic Wire / Cable Harness 2P-3P-4P Single-End Connector
$0.32
1. Pitch (Spacing)
- 2.0mm: Suitable for double-row terminal cables (e.g., 2×2P~2×8P), commonly used for internal connections in compact electronic devices.
- 2.54mm: Compatible with single or double-row cables (e.g., 1P~10P), widely applied for standard-pitch general connections.
2. Wire Specifications
- Gauge: Typically 28AWG (UL2725 or UL1571), ensuring stable conductivity.
- Conductor Material: Tinned copper wire (AWG24~28), available in 0.2mm²~0.5mm² cross-sections with color coding (red/black/white) for circuit identification.
3. Electrical Performance
- Rated Current: 2A (limited by contact area and heat dissipation), suitable for signal transmission or low-power power connections.
- Voltage Rating: 300V AC, insulation resistance ≥10MΩ.
4. Structural Features
- Anti-misfit Design: Supports A/B keyway slots (0.5mm offset) to ensure correct wiring direction.
- Terminal Material: Tin-plated phosphor bronze; plastic housing made of PA66 or PBT, with high-temperature resistance and mechanical strength.
5. Application Scenarios
- Consumer electronics (e.g., LED strips, smart devices).
- Signal and power connections for industrial control modules.
For specific models or purchasing information, refer to the following product links:
